SHELVING AND DRAWER STORAGE

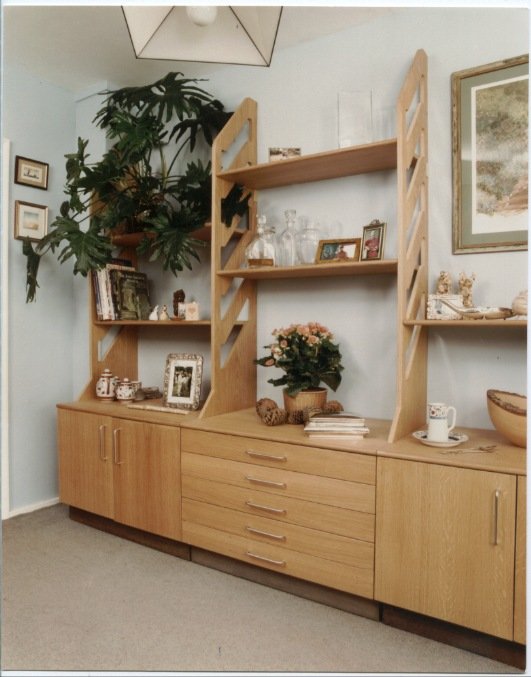

Left end of installed units

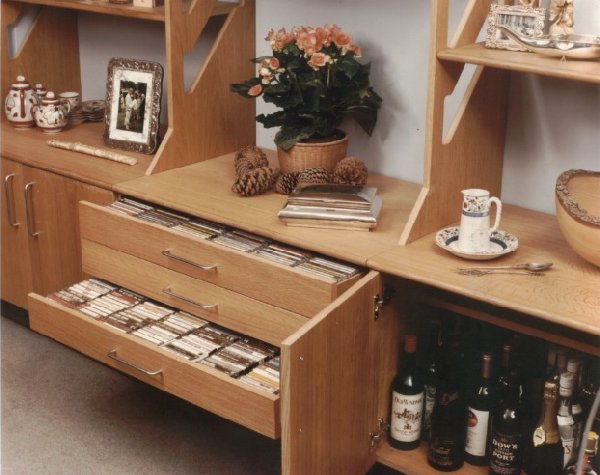

The top and bottom drawers are double depth to take DVD's CD's or Videos. The middle drawer will take cassettes etc.

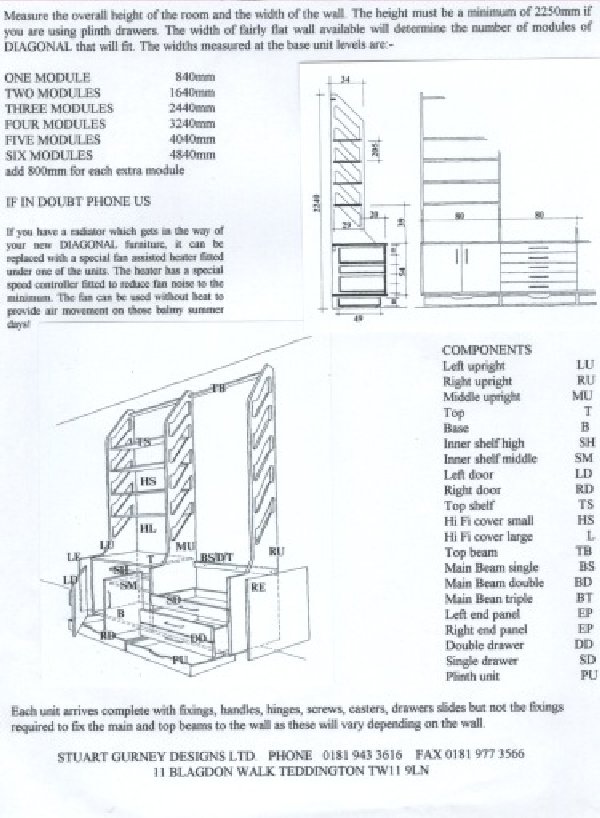

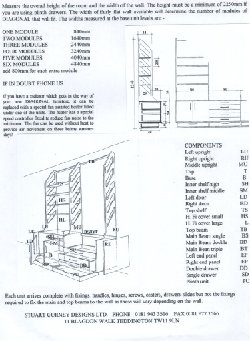

Descriptions and ordering schedule with dimensions and details. This would need significant updating for marketing purposes.



































This system was designed and developed by Stuart Gurney in 1999. The prototype you see here was constructed and is in use today, with little or no signs of wear or failure.

The principle is that with only one horizontal small section that had to be fixed to a reasonably upright wall, the rest of the sections simply "clicked" together.

The system has proved very practical, and made use of all of the available space including drawers under the units which form a plinth, and allow for any uneaven floors.

The system is not available at present as time has not allowed for the completion of the project.

Should investors be interested in further development and marketing SGD would be interested in discussing proposals.

This design is the Copyright of Stuart Gurney

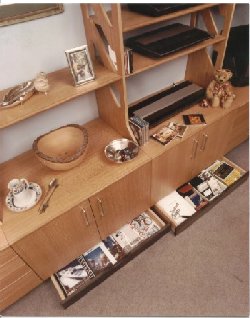

Plinth drawers on ball casters - floor finishes extend under units.

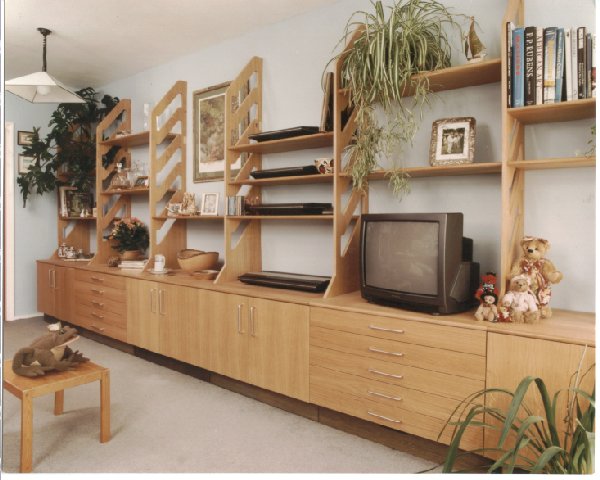

General view of units

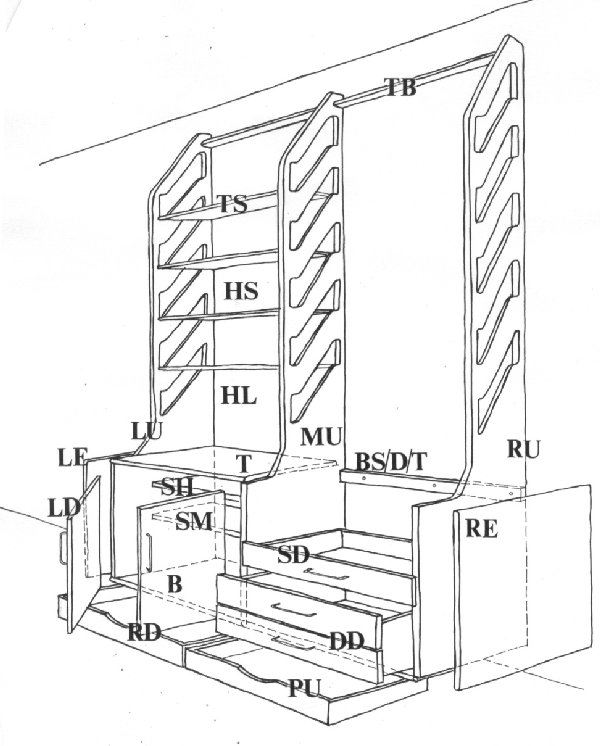

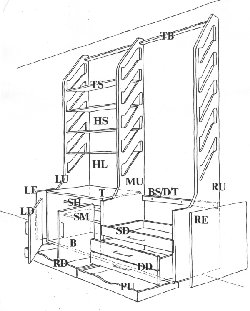

Preliminary drawing of components
